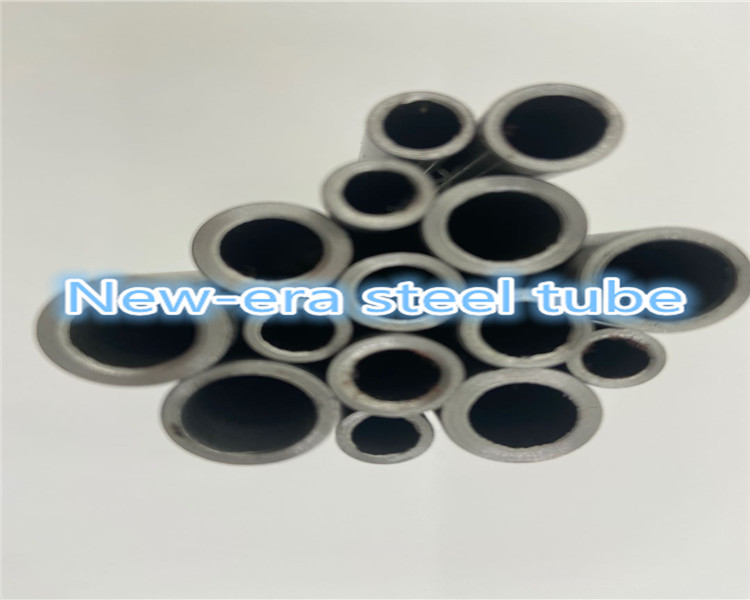

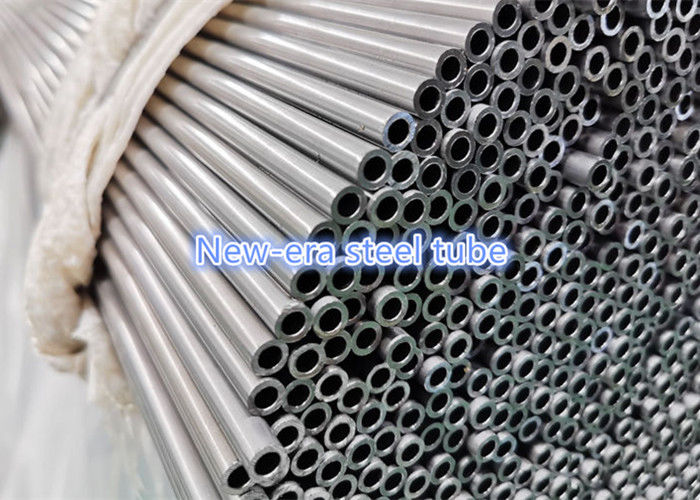

EN10305-1 E235 Precision Seamless Steel Pipe 6-88mm OD

Informação Básica

Place of Origin:	China
Marca:	Pipeway Steel
Certificação:	ISO9001,TS16949
Model Number:	EN10305-1

Minimum Order Quantity:	1 tons
Preço:	Negociável
Packaging Details:	Bundles Package, Wooden Box Package
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	3000 tons/month

Melhor preço contacto

Product Name:	EN10305-1 Steel Pipe	Delivery Condition:	+C, +LC, +SR, +A, +N
OD Size:	6-88mm	WT Size:	1-15mm
Steel Material:	E235 , E255 , E355	Application:	Precision Purpose
Steel material:	Bao steel, Huai steel, Zhongtian steel	Surface:	NBK Bright and clean
Destacar:	E235 precision seamless steel pipe , EN10305-1 steel tube 6-88mm , seamless steel pipe for precision engineering

Seamless Carbon Round Steel Pipe EN10305-1 for Precision Purpose

EN10305-1 E235, E255, E355 +N Precision Seamless Cold Drawn Steel Pipe

Material: E235, E255, E355
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: +C, +LC, +SR, +A, +N
Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.

Product Name	EN10305-1 E235 E255 E355 Precision Seamless Steel Tube
Material	E235, E255, E355
Delivery Condition	+C, +LC, +SR, +A, +N
Standard	EN10305-1
Size Range	OD: 6-88mm, WT: 1-15mm
Application	High precision purpose, auto parts, oil cylinder, etc
Round Billet	Bao Steel, Xingcheng Steel, Zhongtian Steel
Keyword	Seamless Steel Tube
Certificate	TS16949, ISO 9001
HS code	7304319000
Delivery Time	45 days
Pakcing	Bundles or Woodern Boxes

Steel Grade		Chemical Composition
Symbol	Material Number	C Max.	Si Max.	Mn Max.	P Max.	S Max.
E235	1.0308	0.17	0.35	1.20	0.025	0.025
E255	1.0408	0.21	0.35	0.40--1.10	0.025	0.025
E355	1.0580	0.22	0.55	1.60	0.025	0.025

Steel Grade		+C		+LC		+SR
Name	No.	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E235	1.0308	480	6	420	10	420	350	16
E255	1.0408	580	5	520	8	520	375	12
E355	1.0580	640	4	580	7	580	450	10

Steel Grade		+A		+N
Name	No.	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E235	1.0308	315	25	340--480	235	25
E255	1.0408	390	21	440--570	255	21
E355	1.0580	450	22	490--630	355	22

Other Specification:

End Shape:Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's

requirementsSurface Treatment:Oiled, Galvanized, Phosphate etc
Technique:Cold drawn & cold rolled
Application:
Automotive and mechanical pipes
Petroleum cracking pipes
High Pressure Boiler Pipe
Low and middle pressure fluid transportation pipeline
Chemical fertilizer equipment pipes
Heat exchanger pipes
Delivery Conditions:
BK (+C) No heat treatment after last cold forming process.
BKW (+LC) After last heat treatment there is a light finishing pass (cold drawing)
BKS (+SR)  After the final cold forming process the tubes are stress relieve annealed.
GBK (+A)  After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.
Package:
Bundle Packing.

Plain end or vanished as per customer's request.

Wrapped in waterproof paper.

Sackcloth with several steel strips.

Pack in heavy tri-wall boxes.
